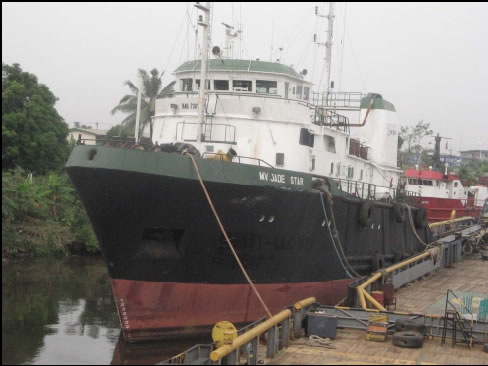

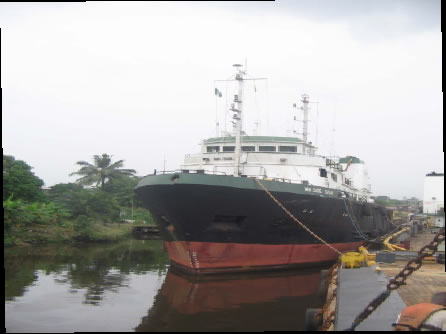

NAME: M.V. JADE STAR
FLAG: NIGERIA
CALL SIGN: 5 NLE
BUILT - April 1974 - Netherland
RE - BUILT February, 2008
Official No. SR 778
IMO No: 7368114

PROPULSION
Main Engines
2 x stork werkspoor 6 Tm 410
Total 8000 BHP
Propellers 2 x opp in Kork Nozzies
Bow Thruster 1 x 315 BHP 675 thrust
Generators 4 x 142 kw, 440v 60 cycles

GENERAL
Vessel built for worldwide operations
to service and tow drilling units and
support production platforms
Class: IRS 08 - 01 - 205

SPEED CONSUMPTION
MAX. Speed 14 knots
7 knots - Abt - 3.4 T/24hrs
8 knots - Abt - 4.1 T/24hrs
9 knots - Abt - 5.1 T/24hrs
10 knots - Abt - 6.6 T/24hrs

TONNAGE
GRT (1969 rules) 1356
NRT (1969 rules) 406
Dead weight 1111
Depth ----- 6.30m (20” 8”)

BOLLARD PULL - 100 Tons
DECK EQUIPMENT
Capstan ..... 2 x 15 T
Anchor ..... 2 x 2 T Recessed bow anchor
Anchor Chain 381m of 44mm Chain
Anchor Handing Winch Type - Electric Driven
A/H Drum Pull - 150 Tone
A/H Drum Capacity 760m of 58mm Wire
Towing Drum capacity - 1000m of 61 Wire
Work Drum capacity -760 of 58mm Wire
Stern Roller - 2.4m dia x 3m length
Winch class - Electric Driven 125 Hp DC.
40 tons pull (Max)
Wildcats 2 for 76mm chains
Big Chain lockers for 4 x 550m of 76mm chains
Stopper pins - 2 hydraulic driven karmoy
Hydraulic crane - 25 Tons at 7m

DIMENSION
Length OA ..... (63.89m (209 “7”)
Breadth Mid ..... 13.30m (43 “8)
Draft ..... (5.06m (16 “7)
Cooled Store - (+4)

CAPACITY
Portable water - 200mt
Drill/Ballast water - 300mt
Gas Oil - 250mt
Gas Oil Daily Tank - 600mt
Dry Bulk in 5 Tanks - 6000ft2
Liquid Mud-in 4 Tanks - 210m3
Cold Store - (-20)
Cooled Store - (+4)

ACCOMMODATION
Breth 38
Certified to carry 72
Mess room 13 - 4 m3
All accommodations fully air conditioned

DISCHARGE RATES
Portable water - 1 x 60m3/hrs at 60m head
Drill/Ballard water - 2 x 100m3/hrs at 60m head
Gas Oil - 1 x 139m3/hrs at 60m head
Liquid mud - 2 x 50m3/hrs at 60m head
Dry Bulk - 2 Compressors
Berite - Abt 30 T/hr
Bentonite - Abt 60 T/hr
Cement - Abt 50T/hr

NAVIGATIONAL EQUIPMENT
Radar-1 x Furuno FRM - 64
1 x Furuno RDP - 111 Daylight
Auto - Pilot - 1 x Decca 550 GM
Echor Sounder - 1 x Sinrad EN
Gyro compass - 1 x Amna Brown - MKX
Magnetic Compass - Decca Aricas 41 B90
Inmersat C - Sailor

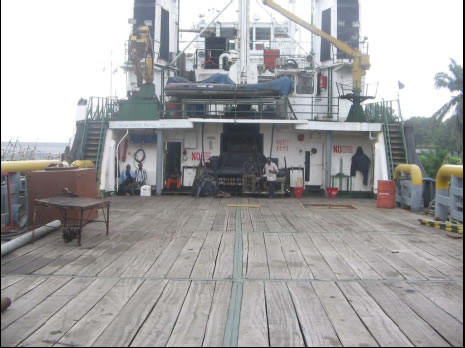

DECK CAPACITY
Deck dimension - 302m2
