CHARACTERISTICS
Length overall ---------- 175ft 53.3m
Beam -------------------- 40ft. 12.2m
Depth ------------------- 15ft 4.5m
Light Draft ------------- 7ft 2.1
Maximum Draft ----------- 12ft 3.6

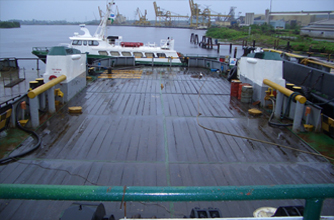

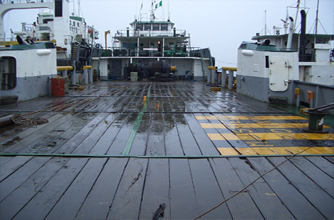

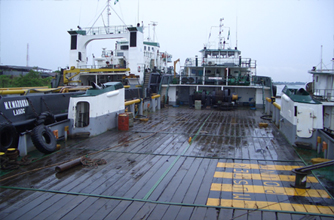

Deck Space -------------- 120ft * 40ft

CAPACITIES
Fuel ------------- 500metric tons
Portable ---------- 490 metric tons

ACCOMODATIONS

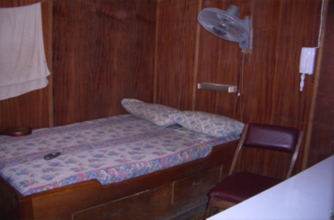

Berths ---------------- 24
Certified to carry ------ 40
Air conditioning ----- (1) 10 ton
Walk-in freezers ------ (1) 20’ * 8’

MACHINERY
Main engines ------------ (2) cat 399

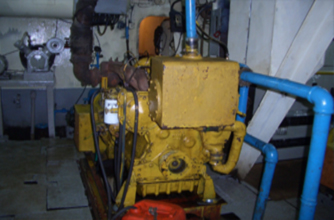

Generators ---------------(2) CAT 3304
Extra Generators ------- (2) 1.30 KVA
1.100 KVA
Bow Thruster -----------Model custom 8000
Towing Winch -------- (1) 120 ton double drum

ELECTRONICS
Radar --------------- (2) Furuno
Echo sounder ---------- Furuno
Radios -------------- (2)VHF/SSB
Direction finder No
Automativ pilot Sperry 8T
Loud hailer -------- Raytheon 350
G.P.S ------------- Garmin - 100

PERFORMANCE
Speed
Maximum ------------------------ 15 knots
Cruising ------------------------ 11 knots
Range
Maximum ------------------------ 150 days
Cruising -------------------------- 90 days
Bollard pull ---------------------------- 25 tons
Deck cargo ---------------------------- 500 tons

REGISTRATION
Flag ----------------- Panama
Home port --------- Panama
Class ---------------- P.B.S
Intn’l load line A-1
Gross Tonnage ------------ 298
