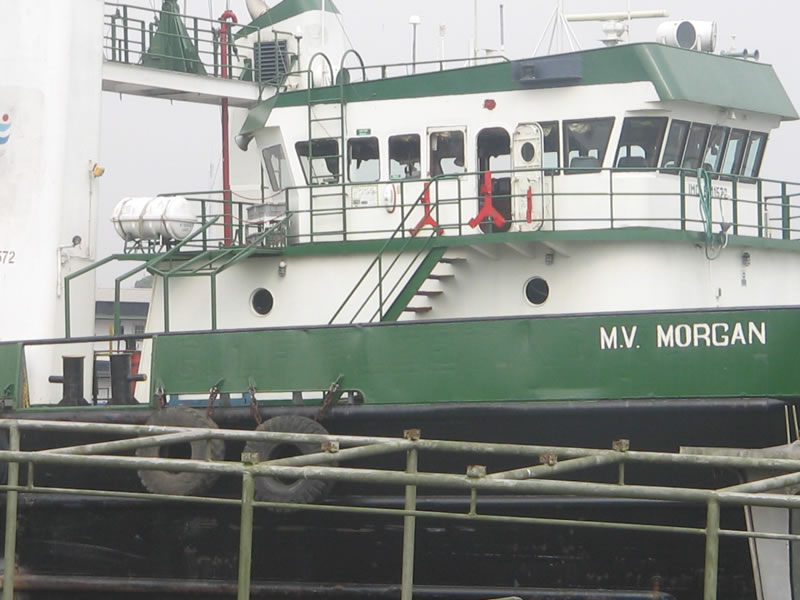

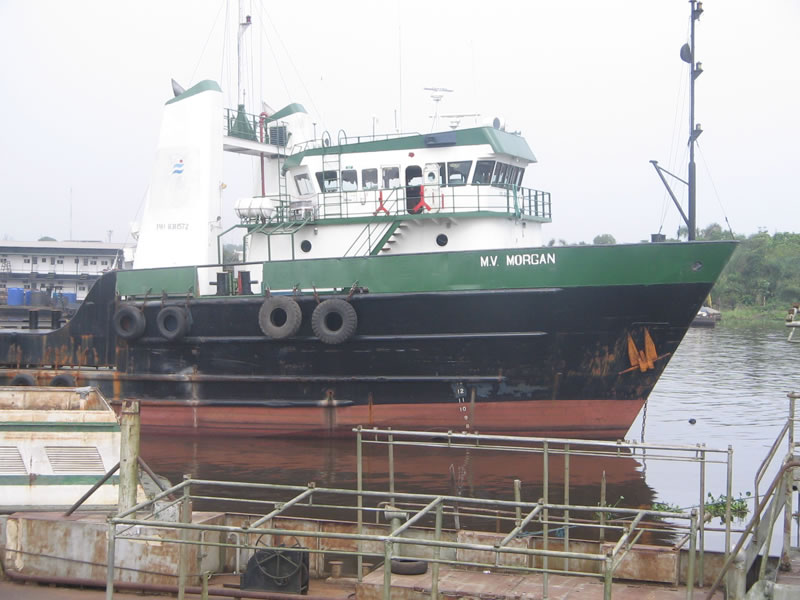

NAME: MORGAN
FLAG: NIGERIA
CALL SIGN:5NIZ2
BUILT- 1984
BULDER: SHIPYARD
OFFICIAL NO: SR1097
IMO NO: 8311572
HOME PORT: LAGOS
HULL NUMBER: 188

TRANSFER RATES
CARGO WATER………..250 GPM @ 200FT 57.0 T/H @ 61.0M
FUEL OIL………………250 GPM @ 200FT 48.0 T/H @ 61.0M
BULK……………………17 CFM @ 170 FT 45.0T/H @ 52.0M
DRILLING FLUID……………..500 @ 175 FT 286.0 T/H @ 53.0M

GENERAL
VESSEL BUILT FOR WORLDWIDE OPERATIONS
TO SERVICE AND TOW DRILLING UNITS AND SUPPORT PRODUCTION PLATFORMS

TOW AND ACHOR HANDLING
STERN ROLLER……………AVONDALE 5 FT X 8 FT
SWL…………………………………………….175

CLASS: IRS
TONNAGE: GRT (496)

TOTAL CERTIFIED TO CARRY……………….20
G ALLEY SEATING………………….9
AIR CONDITION/HEATING…………………..YES

NRT (275)
LENGTH OVERALL 187.0FT 57.0M
BEAM……………40 FT 12.2M
DEPTH…………...14 FT 4.3M
MAXIMUM DRAFT..12.0 FT 3.7 M
LIGHT DRAFT 6.5 FT 2.0 M
FREEBOAD…….2.0 FT 0. 6M
DISPLACEMENT AT LOADLINE ….1,639.4LT 1,665.6T
DEADWEIGHT……………………902.0 LT 916.4. T

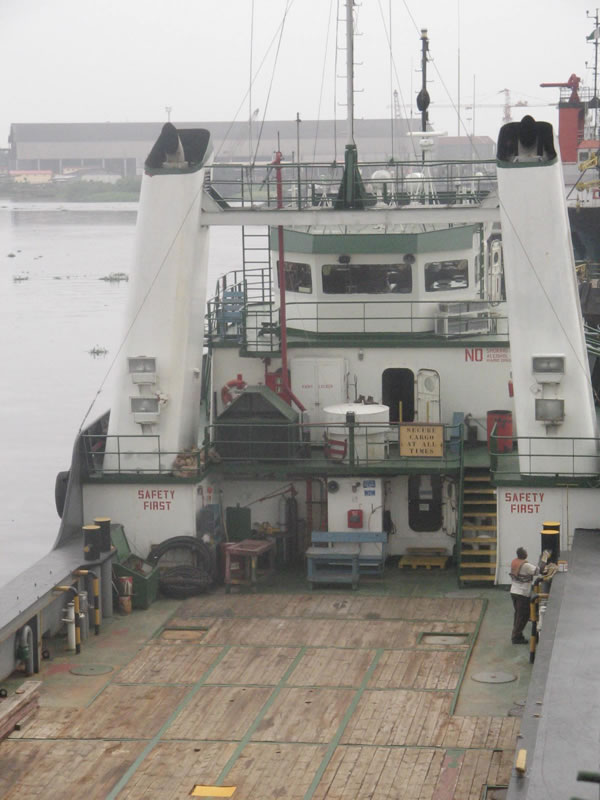

CLEAR DECK SPACE……………100 X 30 FT 30.4 X 9.1M
DECK STRENGTH………………..540.0 LB/FT2
MINIMUM HEIGHT……………..45.5 FT

ACCOMMODATION
STATEROOMS……………… (2) – 1 MEN
                                          (2) – 2 MEN
                                          (2) – 4 MEN
                                          (1) – 6 MEN
TOTALS CERTIFIED TO CARRY……..20

CAPACITIES
DECK CARGO……….568 577.0T
CARGO WATER……….45,600 GAL 172.5 T
FUEL OIL…….90,500 GAL 291.8 T
PORTABLE WATER……..11,600 GAL 43.9 T
LUBE OIL………………2,580 GAL 8.0 T
BULT TANK (6)……..6,000 FT 169.9
DRILLING FLUID (201 LBS/GAL… 1,250BBL 198.7 M2
WALK IN COOLER………243 FT 3 6.9M3
WALK IN FREEZER…………..178 ft 5.0 m3

AIR CONDITON/HEATING…..CENTRAL, AIR AND HEAT
ELECTRONICS
RADAR (S)…………………………..2
RADIO………………………………..2
SSB………………………………….1
LOUDHAILER……………………… 1
GYRO COMPASS…………………1
LORAN……………………………2
FATHOMETER……………….1
EPIRB…………………………1
AUTO PILOT……………..1
SPECIAL EQUIPMENT
FIRE FIGHTING……..YES
RESCUE BOAT………….AVON 6

MACHINERY
Main Engines………………(2) E M D 16-645E2
Horsepower………………… 3900 bhp
Gears………………………..(2) Reintjes WGV-481:3:1
Propellers…………………(2) 4-blade; 93Inch x 71 Inch
Primary Generators……..(2) 99 kw 450V 60 hz
Driven by…………………..DD 8V71
Bow Thruster (1 Murray @ Tregurtha BT 340
Driven by………………….DD 8V71 W/335 bhp
Thrust (Max)………………4 St 3.8 t

PERFORMANCE
(Assuming Fair Weather)
Maximum………..15 knots abt 174 gph
Cruising…………..12 knots abt 14 gph
Economical .......Abt 9 knots abt 67gph
Standby (generator Only)…….0 knots abt 14 gph
Range@ 11.0 knots abt…………8.365nm
Bollard Pull………………….43 st 39.0 t

WELDING MACHINE…….MILLER DIALARE 250

BULK………….1 FT@150 FT 28.9 T/H@45.7M Drilling Fluid………..500 gpm@150 ft 113.6 T/M@45.7M
