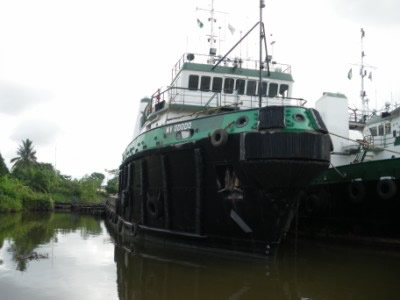

REGISTRATION
NAME: ODODO
FLAG: NIGERIA
CALL SIGN:YJTA5
BUILT- 1978
BULDER: CAMPBELL INDUSTRIES
OFFICIAL NO: 1519
HOME PORT: LAGOS
ABS +AI (E):+AMS
HULL NUMBER: 120
|
CAPACITIES
Deck cargo ……………….291 296.3 t
Cargo water……………….150,680 gal 575.5 t
Fuel oil…………………….128,870 gal 415.5 t
Portable water…………….53,660 gal 203.0 t
Lube oil………………….…3,989 12.4 t
Bult tanks (4) ……………..6,000 ft 169.9m 3
Walk in cooler…………….485ft 3 13.7m3
Walk-in freezer…………….330 ft 9.3 m3
|
GENERAL
VESSEL BUILT FOR WORLDWIDE OPERATIONS
TO SERVICE AND TOW DRILLING UNITS AND
SUPPORT PRODUCTION PLATFORMS
|
TONNAGE
GRT (299) NRT (203)
|

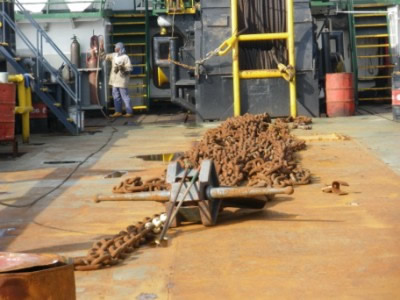

VESSEL MOORING
windlass…………………1.5 in. dbl wildcat/cathead
Anchors…………………..(2)
Chain (Per Side)………..2,000ft of 1.50 In
|
CLASS
ICE CLASS |
ACCOMMODATION
Staterooms………….(6) – 1 man (3) – 2 men
(1) - 4 men (1) – 8 men
Total certified to carry……..24
Galley Seating………..…....8
Air conditioning/heating…....Yes
|
MACHINERY
Main engines………………(2) e m d 16-645e7
Horsepower………………..5750 bhp
Gears……………………….(2) falk 3535zmpc
Propellers…………………..(2) 4-blade; cp132 in. Dia.
Kort Nozzles………………..(2) yes
Primary generators………...(2) 150 kw 440v 60hz
Secondary generators…….(.1)100kw 440v 60hz
Driven by……………………GM/DD 8v-71
Auxiliary generators………..1. 315kw 440v 60hz
Bow thruster………………..1 400bhp
Driven by………………..….GM/DD 12v-71 400hp
Thrust (max)……………..…5 st 4.5t
|

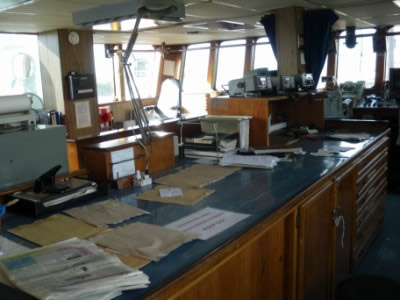

ELECTRONICS
Radar (s)……………………..2
Radio….……………………..VHF - 2
Radio SSB - 2
Satcom………………………voice/fax
Gyro compass………………1
Loran………………….………1
Navigation Aid………………..1
Fathometer…………………...1
GMDSS…………………….....1
Auto pilot……………………...1
|
SPECIAL EQUIPMENT
Fire fighting ………………….yes
Oil dispersant system……..…yes
Joystick controls………………yes
Dynamic positioning………....yes
Crane…………………………..yes
Stabilization system…………..yes
Rescue boat…………………..inflatable
Welding machine……………..250 amp
Misc…………………………….A-Frame 25 Ton SWL
Oceaneering rov system - yes
|
PERFORMANCE
(Assuming fair weather)
Speed vs fuel consumption
maximum…………..abt 15 knots abt 250gph
cruising………………..abt 12 knots abt 148gph
economical……………….. abt 8 knots abt 65 gph
standby (generator only)……0 knots abt 3 gph
Range @ 1.0 knots ………. abt 10,449nm
Bollard pull……………….... 90 st 81.7 t
|
TRANSFER RATES
Cargo Water 400 Gpm @ 200ft 91.0 T/H @ 61.0m
Fuel Oil…………370gpm @ 200ft 72.0 T/H @61.0
Bulk……………110cfm @ 170 Ft 300t/H @ 52.0m
|
CHARACTERISTIC
Length overall 207.3ft 63.2m
Beam……………40 ft 12.2m
Depth…………...17.0 ft 5.2m
Maximum draft14.8 ft 4.5m
Light draft……..10.0 ft 3.0m
Freeboard……..2.1 ft 0.6m
Displacement at loadline ….2,125.0lt 2,159.lt
Deadweight……………………930.0 lt 945.3t

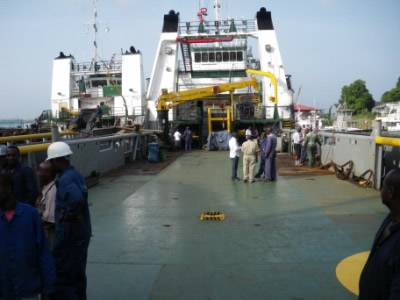

Clear deck space………118 x 32 ft 35.9 x 9.7m
Deck strength…………..540.0 lb/ft2 2.6 t/m2
Minimum height……………..65.0 ft 19.8m
|

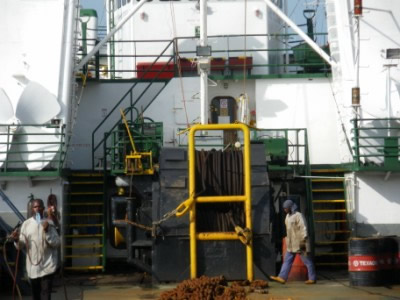

TOW AND ANCHOR HANDLING
Winch…………………….Smatco Wf
Model……………………72 Daw 250
Line Pull………………….300,000lbs
Capacity…………………3,000 Ft Of 2.12 In
Tugger…………………….(1) electro-hydraulic
Line Pull…………………10,000 Lbs
Capstan…………….……(2) smatco vertical
Line Pull…………………10,000 Lbs
Stern roller……………….5 ft x 12 ft
Tow pins…………………retractable
|
