MAIN DIMENSIONS
Length Overall 40.75 m
Registered Length *36.956 m Beam 9.50 m
Maximum Draught 2.7 m
GRT 467T NRT 140T
Deadweight 258T Bollard Pull 27T

ACCOMMODATION
(Fully Air-conditioned) Officers and Crew 10 Berths Cabins 4x1 + 3x2
Passengers 08 Berths
Cabins 2x1 + 1x2 + 1x4
(Option to increase 3 extra bunks for 11 passengers)

CARGO

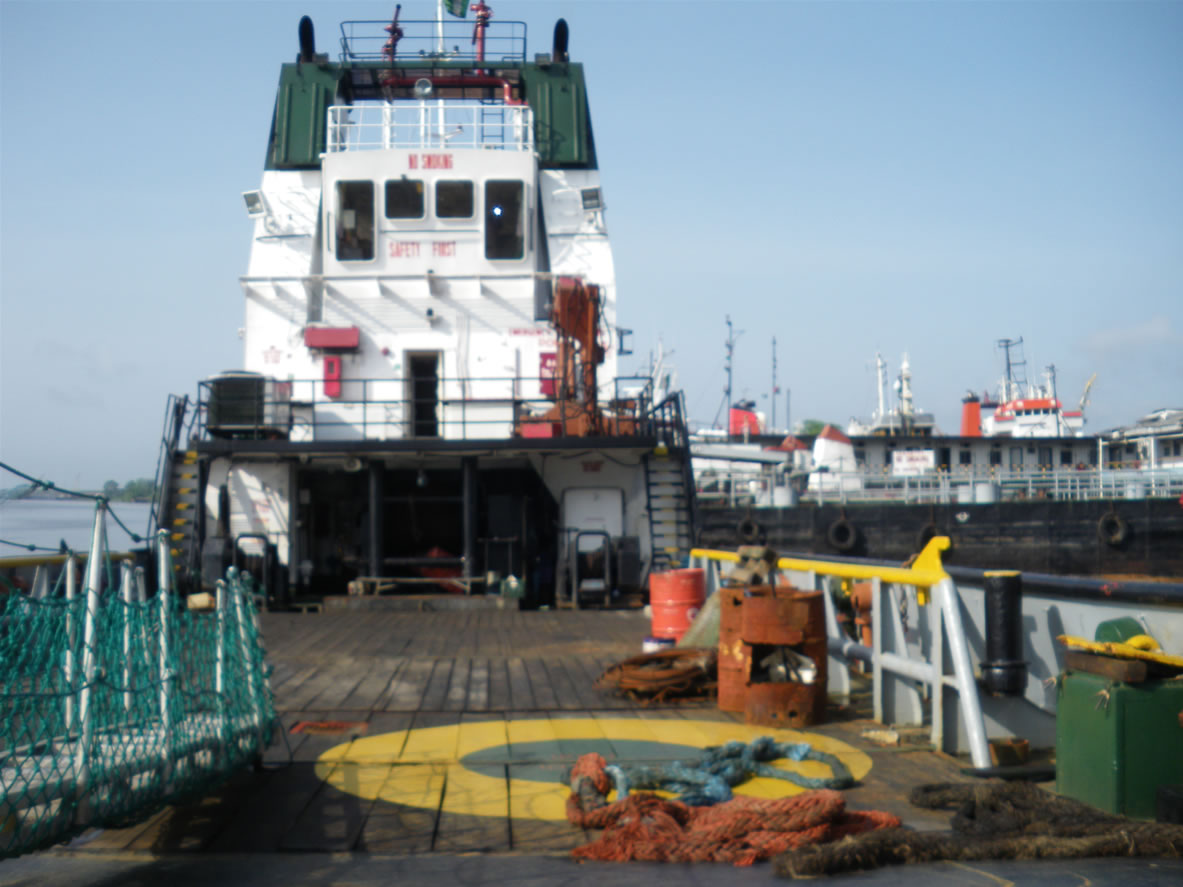

Clear deck area 16m x 6.50m
Deadweight 258T Strength 2T/m²
Fuel Oil 188 m³ Total)
Potable Fresh Water 152 m³ (Total)
Drill water/ballast 132 m³ (Total)
Lubricating Oil 2 m³

MACHINERY
Main engines 2 x Crepelle 4 PS N 3-L
Rating (2 engines) 2,500 BHP @ 850 rpm
Propellers Variable Pitch
Fuel MGO
Bow Thruster 180 BHP electrically driven
Generators 2 x GM 4-71 2 x 50 Kw 230 V 60 Hz
Output (each) 1 x 74 Kva 380 V 50 Hz

CONSUMPTION
Max Speed of 12 knots 4,3T per day
Max Speed of 10 knots 3,2T per day
Stand-by 0,12T

REFRIGERATION
Freezer 282 cu.ft 8m³
Cooler 353 cu.ft 6m³

FIRE-FIGHTING EQUIPMENT
Pump 1 @ 300m³/hr
Foam/Watermonitor 2 units
Fixed Foam Mixer 1 unit
Detergent System 1 unit with electrically driven pump
Spray Booms 2 Units
Water / Foam unit 1 Deck mounted unit 750 ltr/min @ 8 bar
c/w manual motor
