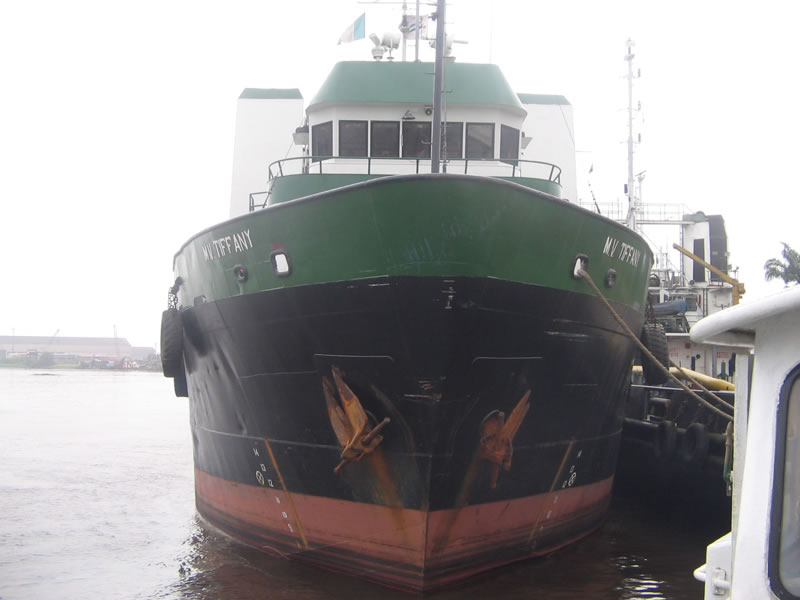

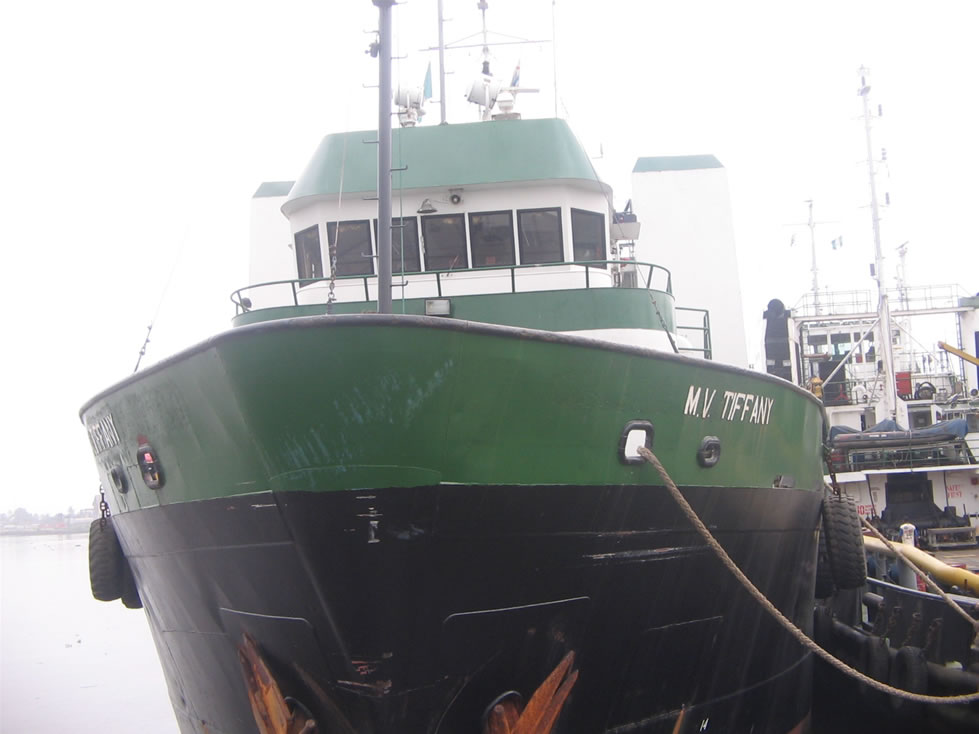

NAME:TIFFANY
FLAG: NIGERIA
CALL SIGN:5N1Z3
BUILT- 1983
BULDER: ESTERN MARINE
OFFICIAL NO: SR 1098
IMO NO: 8207501
ABS +A-1,ABS,E
HOME PORT: LAGOS
HULL NUMBER: 57

TOW AND ANCHOR HANDING

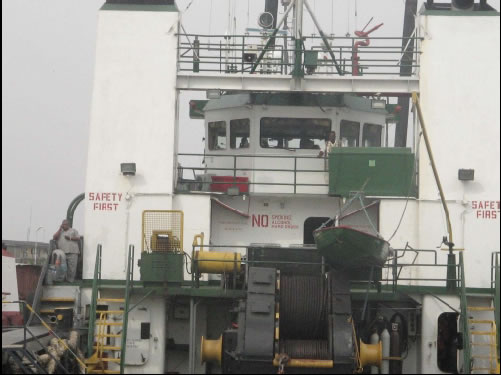

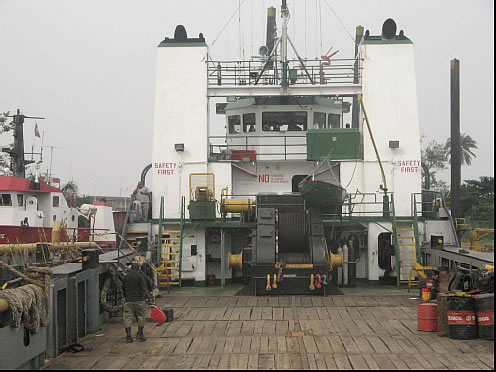

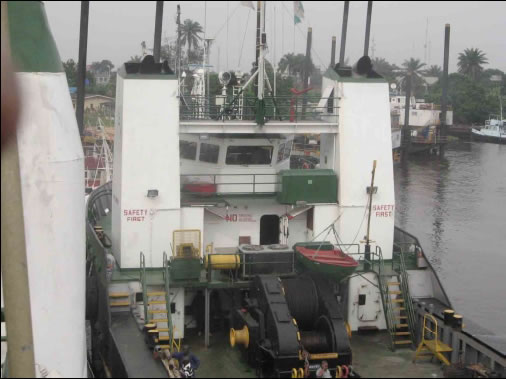

WINCH………………………SMATCO DBL DRUM WF
MODEL……………………….72 DAW 250
LINE PULL……………………300,000 IBS
CAPACITY……………………3,000 FT OF 2.3 IN
TUGGER………………………(1) YES
LINE PULL……………………. 10.00 LBS
STERN ROLLER…………………5 FT X 8 FT

VESSEL MOORING
WINDLASS…………………….1.5 INCH DOUBLE WILD CAT
ANCHORS…………………(2) 2.000 LB DANFORTH
CHAIN (PER SIDE)………………1,080 FT OF 1.5 IN

GENERAL
VESSEL BUILT FOR WORLDWIDE OPERATIONS
TO SERVICE AND TOW DRILLING UNITS AND
SUPPORT PRODUCTION PLATFORMS
CLASS: IRS

ACCOMMODATIONS
STATEROOMS……………(2) 1 MAN (2) 2 MAN
(2) 4 MEN (1) 6 MAN
TOTAL CERTIFIED TO CARRY……………….20
AIR CONDITION/HEATING…………………..YES

TONNAGE:
GRT (496)
NRT (275)
LENGTH OVERALL 194FT 59.1M
BEAM……………40 FT 12.2M
DEPTH…………...15 FT 4.6M
MAXIMUM DRAFT..12.6 FT 3.8M
LIGHT DRAFT……..5.6 FT 2.0M
FREEBOARD……..2.4 FT 0.7M
DISPLACEMENT AT LOADLINE ….1,988LT 2,019.8T
DEADWEIGHT……………………1,114 LT 1,131.B T
CLEAR DECK SPACE……………108 X 31 FT 32.9 X 9.4M
DECK STRENGTH………………..540 LB/FT2 2.6 T/M
MINIMUM HEIGHT……………..35.4 FT 10.8M

ELECTRONICS
RADAR (S)………………………. 2
RADIOS………………………….SSB - 1
VHF - 1
DEPTH SOUNDER…………………. 1
GYRO COMPASS…………………. ..1
LORAN…………………………… 1
SATELLITE NAVIGATION……..1
AUTO PILOT…………………………1

CAPACITIES
Deck Cargo ……………….770 782.3 t
Cargo Water……………….163,560 gal 618.8 t
Fuel Oil…………………….77,040 gal 248.5 t
Portable Water…………..12,000 gal 45.4 t
Lube Oil……………………3,890 gal 12.1 t
Bult Tanks (4) …………..5,400 ft 152.9
Drilling Fluid (20 Lbs/gal..1,600bbl 254.4 m2
Walk in Cooler…………….110 ft 3 7.6m3

SPECIAL EQUIPMENT
FIRE FIGHTING…………..1 MONITOR, TOTAL 1000GPM
400 Ft
RESCUE BOAT……………. YES
WELDING MACHINE……….250 AMP

MACHINERY
Main Engines………………(2) E M D 16-645ED3A
Horsepower………………… 4,500 bhp
Gears………………………..(2) Lufkin RS2320: 3:1 ratio
Propellers…………………(2) 4-blade; 90 Inch x 68 Inch
Primary Generators……..(2) 99 kw 450V 60 hz
Driven by…………………..GM 8V71
Bow Thruster (1 300 H.P Harbor Master BT 340
Driven by………………….GM 8V-71
Thrust (Max)………………3.6st 3.4 t
Drilling Fluid…………..500 gpm@150 ft 113.6 t/h@45.7m
